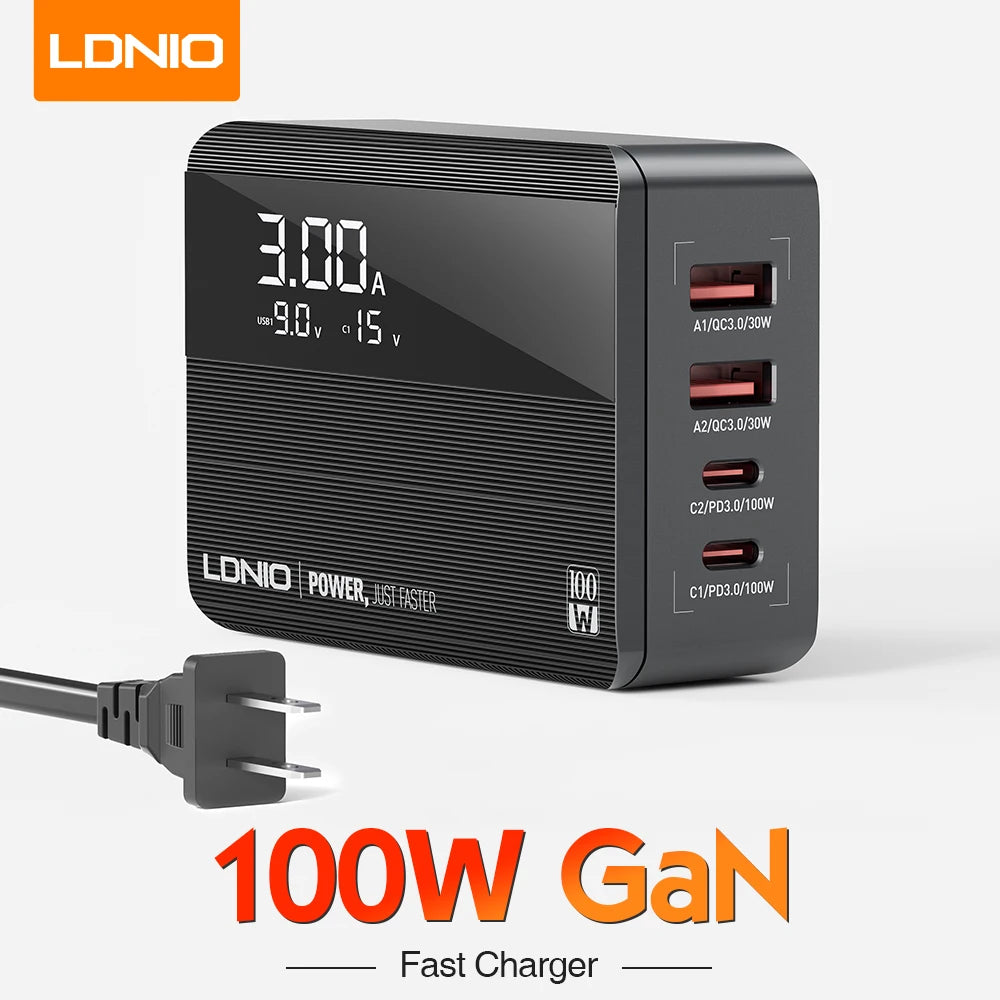

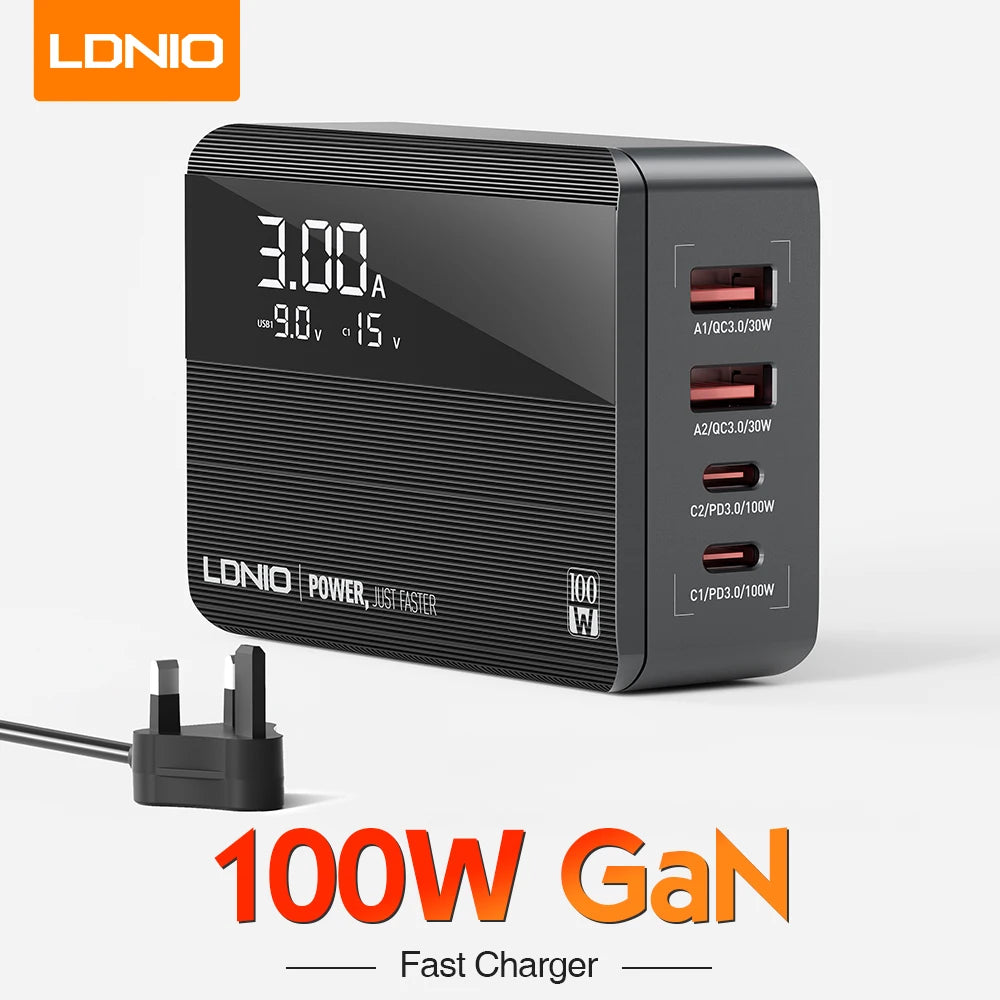

SPECIFICATIONS

Applied Fast Charge Protocols: Samsung Adaptive Fast Charge,USB PD,Other,BC1.2,Qualcomm Quick Charge

Brand Name: LDNIO

Certification: UL,CE,CCC

Choice: yes

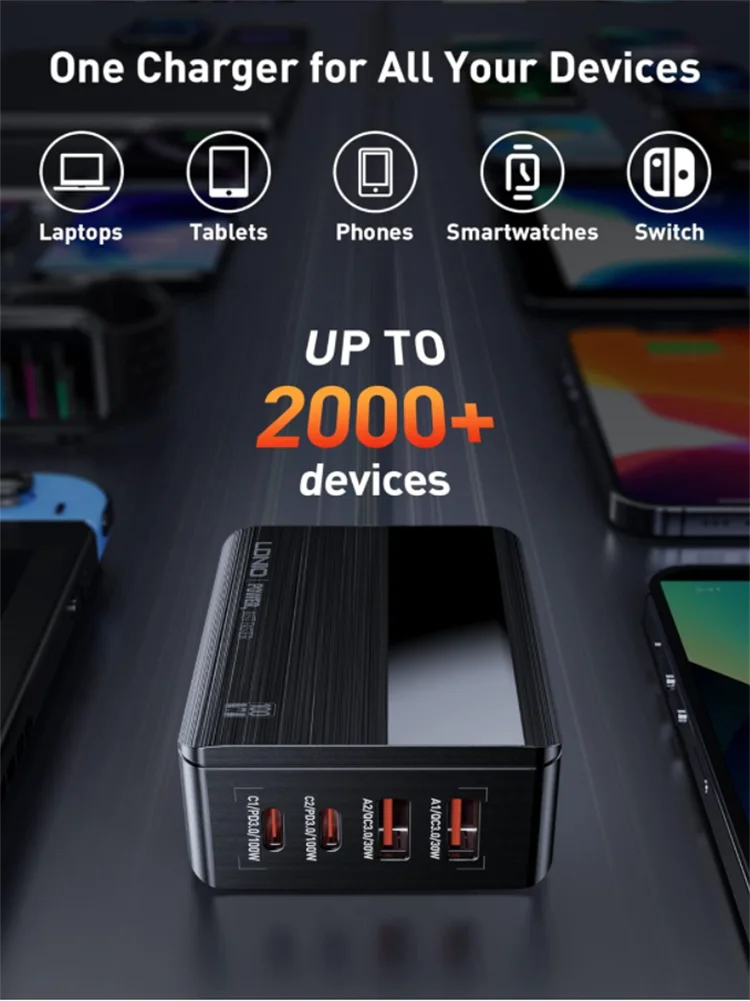

Compatible Devices: Tablets, Laptops, Cellular Phones, Headphones, Smartwatches

Display screen: Yes

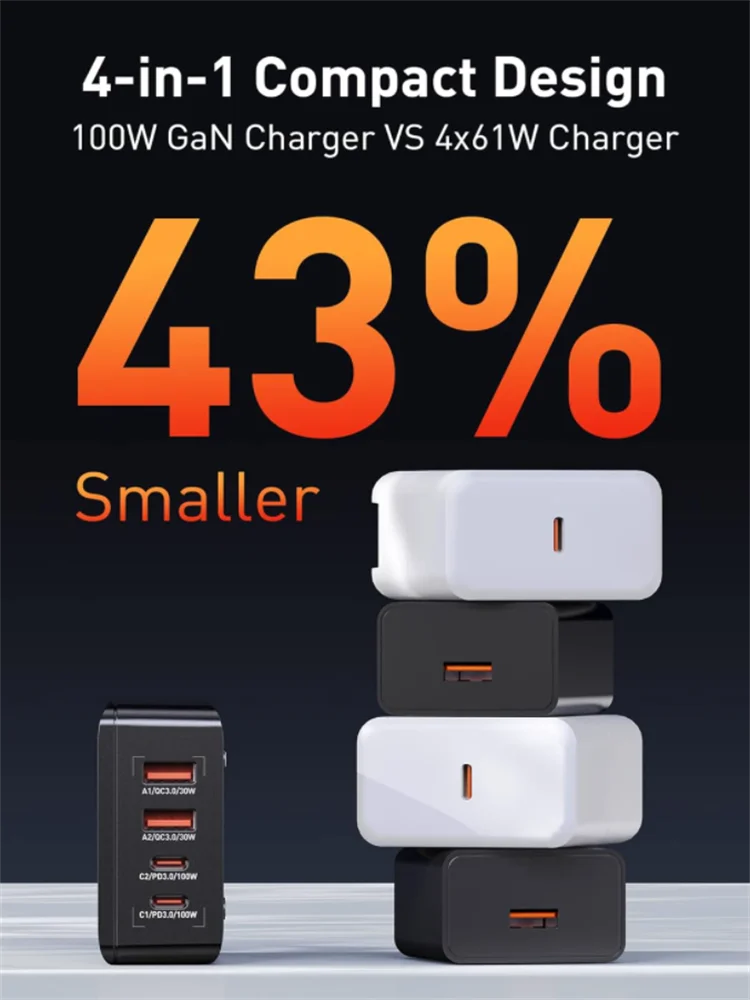

Enclosure Size: 96mm*66.4mm*31.5mm

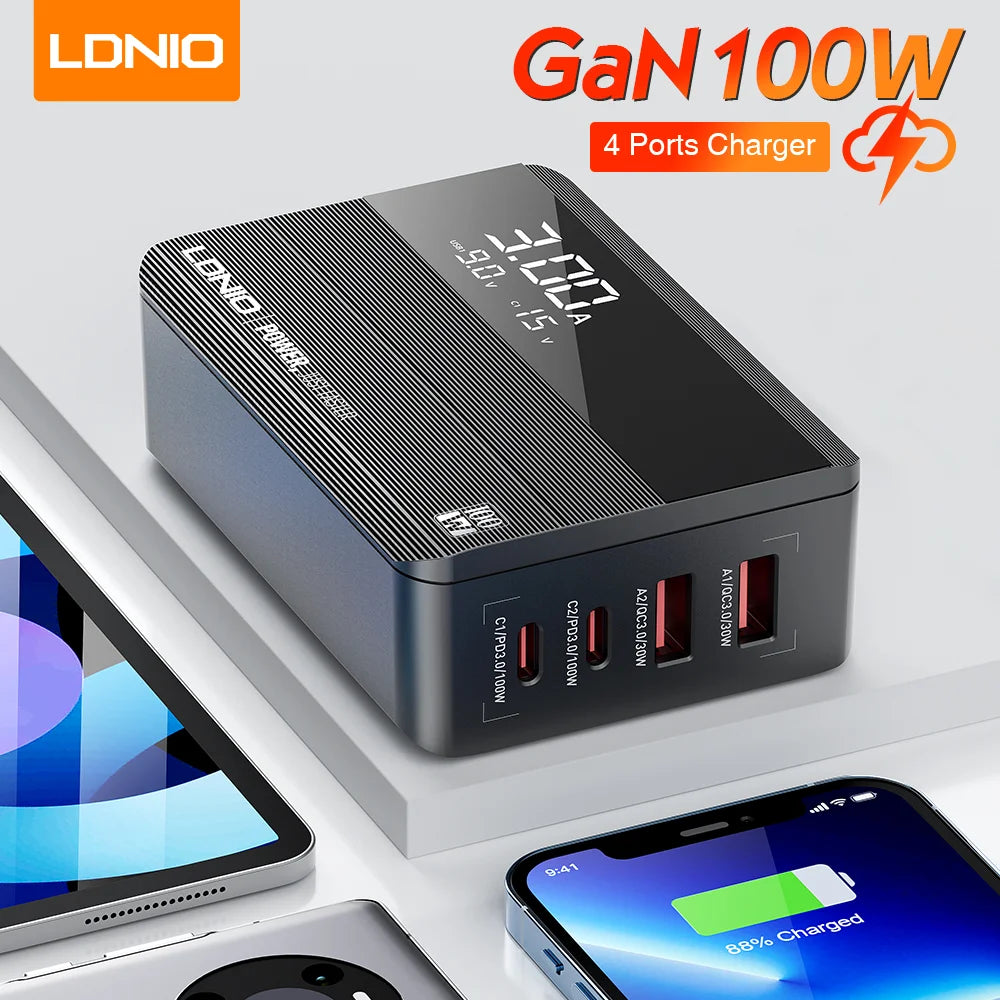

GaN: Yes

High-concerned chemical: None

Included Components: 100W USB C Charging Station,5ft Extension Power Cable

Max. Output Power: 100W

Model Number: A4809C

Origin: Mainland China

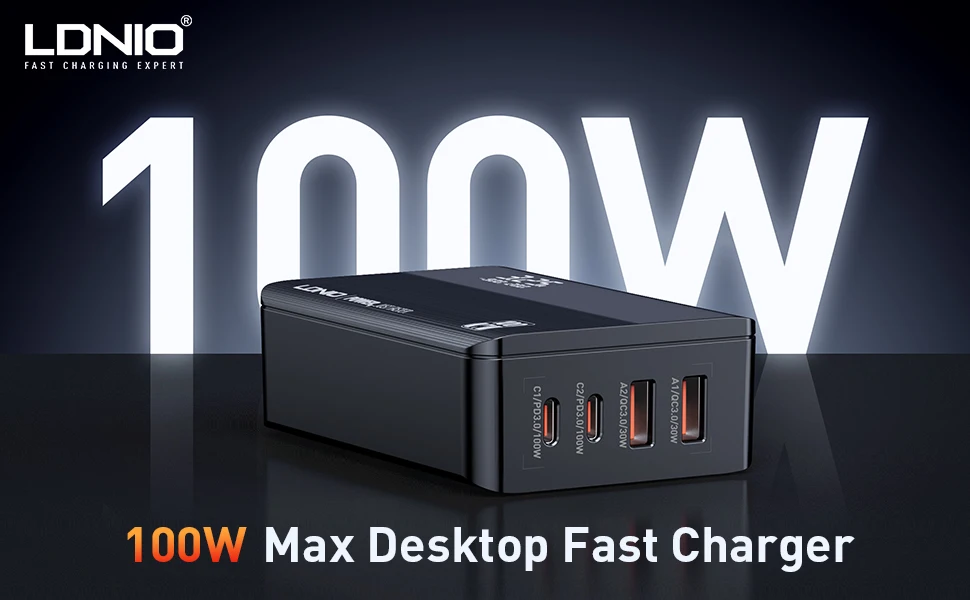

Output Interface: 2 A Ports,2 C Ports

Power Source: A.C. Source

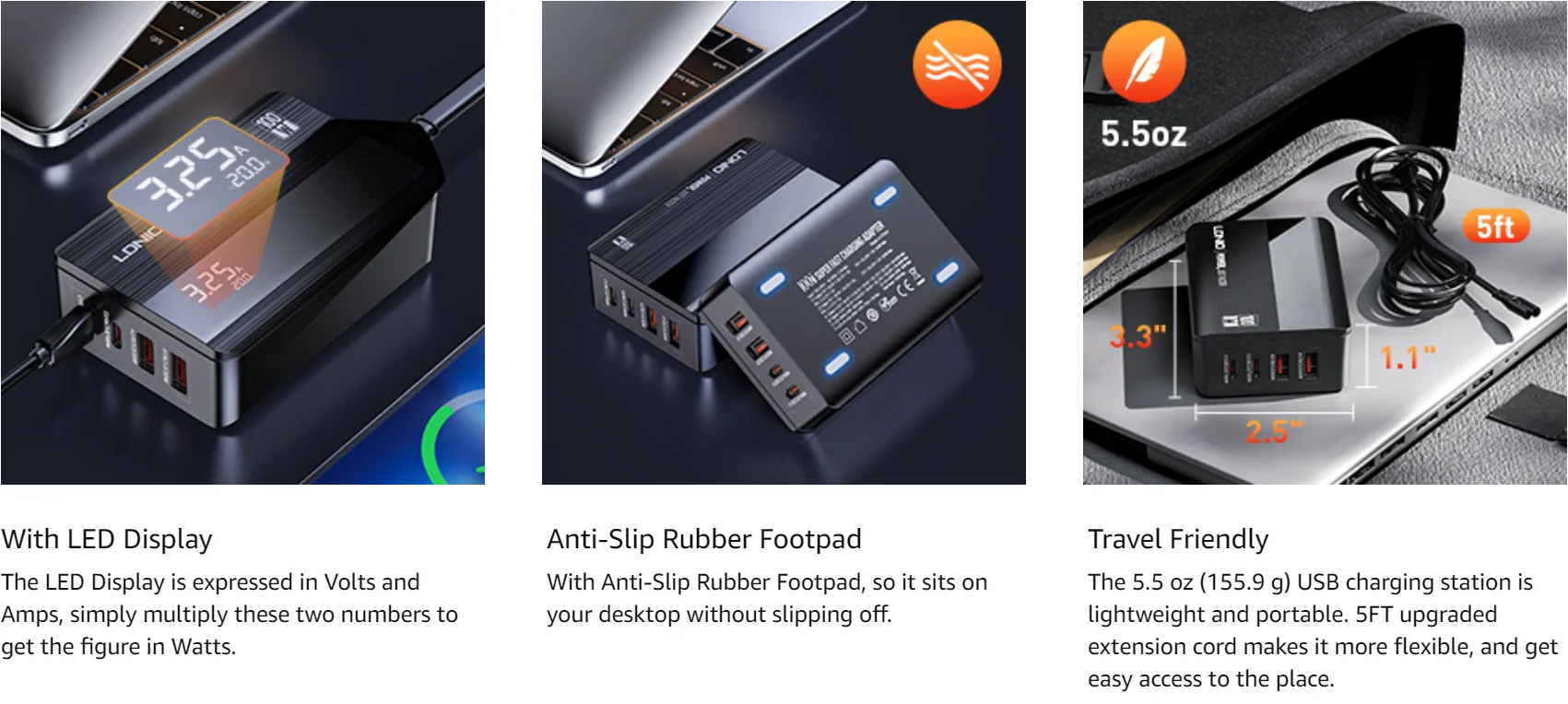

Special Feature1: LED Display

Special Feature2: 4-Ports USB Charger Station

Special Feature3: Lightweight Design

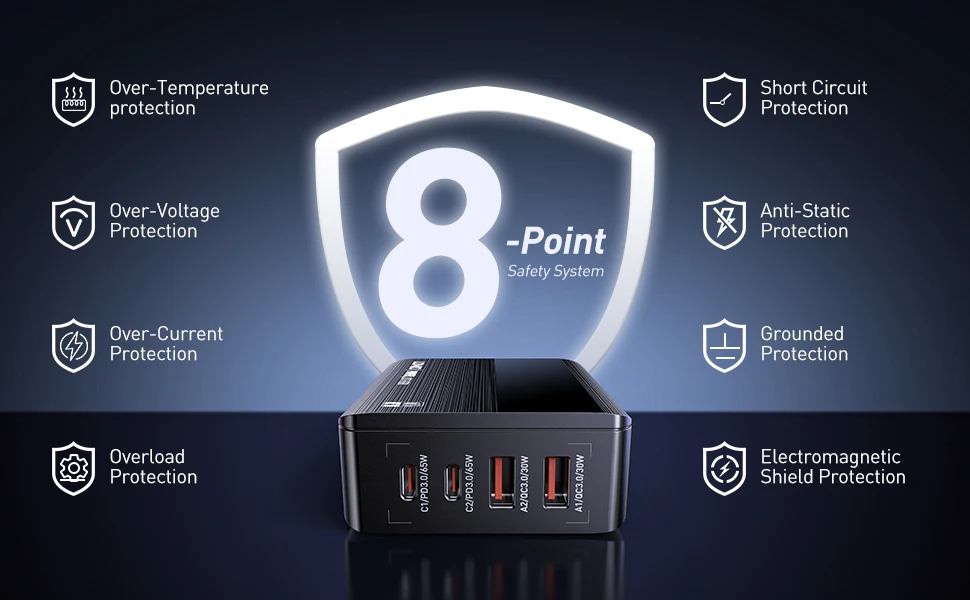

Special Feature4: Safty Protection

Type: Desktop

semi_Choice: yes

Choose a fast charger for your SAMSUNG device

1 check if your Samsung smartphone supports fast charging

First, check if your Samsung smartphone supports fast charging. Since 2019, almost all Samsung smartphones support fast charging. Only old phones like the A10, don’t always support fast charging.

2 check which type of Samsung fast charging you need

A series* - Adaptive Fast Charging/New S series (from S20) - Super Fast Charging/Old S series (S10 and older) - Adaptive Fast Charging/New Note series (from Note 10) - Super Fast Charging/Old Note series (S10 and older) - Adaptive Fast Charging/M series - Adaptive Fast Charging/Flip series, first Fold - Adaptive Fast Charging/Fold series since the Fold 2 - Super Fast Charging

3 choose a charger with the right power

Charing is faster with a higher power, but ONLY if your smartphone supports this power. Devices with Adaptive Fast Charging support charging with a maximum of 15W. A charger with a higher wattage isn’t faster but isn’t harmful to your smartphone either. For super Fast Charging, there are two chargers, a 25W and a 45W. Charging with 45W is only about 10 minutes faster than 25W. Only the S22 Plus, S22 Ultra, Note 10 Plus and Note 20 support this.

4 make sure you have the right cable

Which cable you need differs per fast charging technique. Adaptive Fast Charging cables have a squared USB-A port. You can use the standard USB-A to USB-C cable for this. Super Fast Charging chargers have an oval USB-C port. If you want to charge with this one, you need a cable with 2 USB-C connectors. [Note: Our charger supports super fast 45W PPS fast charging, but requires a charging cable with an E-Mark chip that also supports 100W charging power to do so.]

Warm Tips:

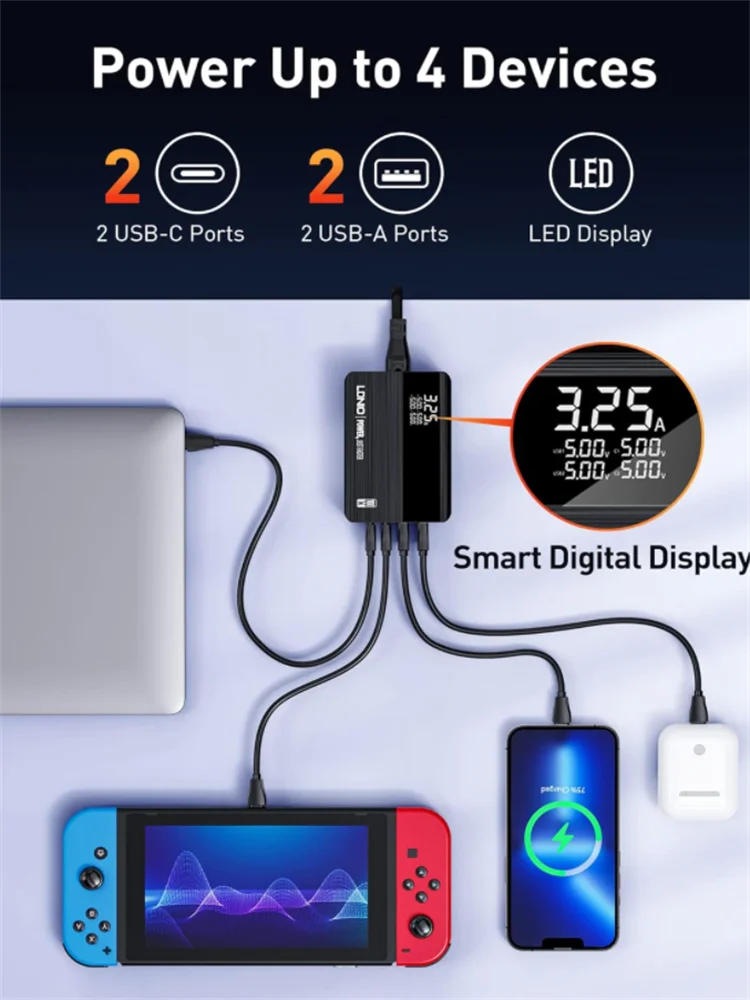

1 When charging multiple devices, each time a new device is connected, it will cause a short charging pause for the other devices. This short pause is because the desktop charger is Intelligently Redistributing Power based on the device's own protocols to protect your device's battery.

2 When multiple ports are used at the same time, the output port corresponding to the current display value will Flicker Continuously 6 Times, and the current display will be cyclically switched. For example, when USB1 and C2 are used at the same time, the two characters will flash 6 times, corresponding to the actual current value.

3 Please check if your smart device supports Fast Charging and the Maximum Charging Power. The charging power is determined by your device and the maximum charging power obtained varies from device to device.

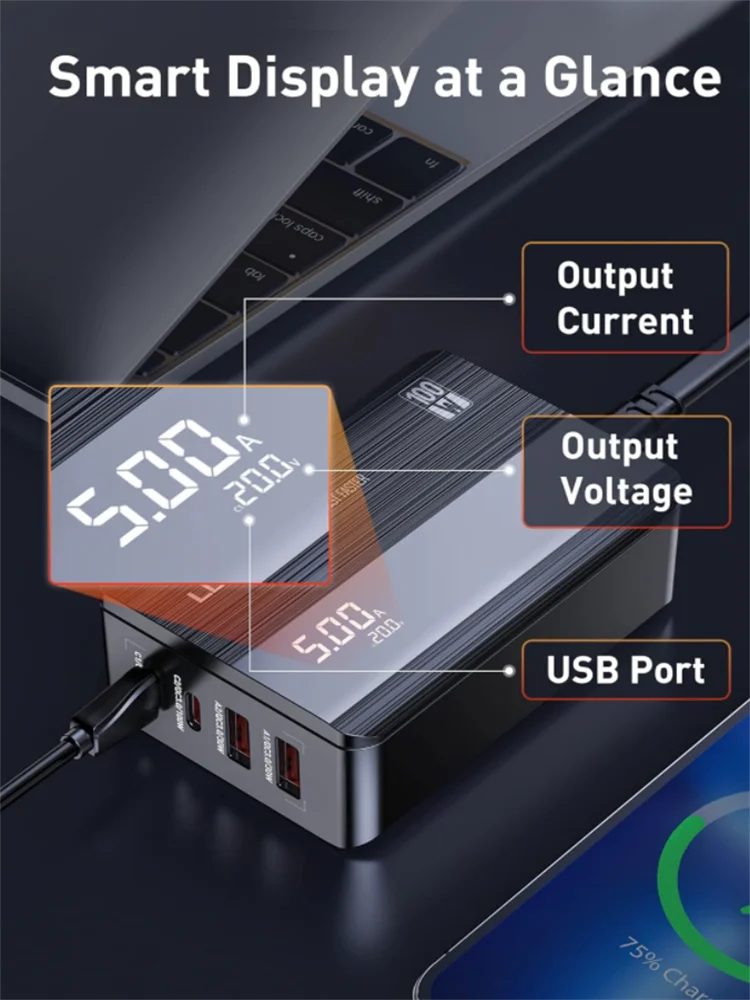

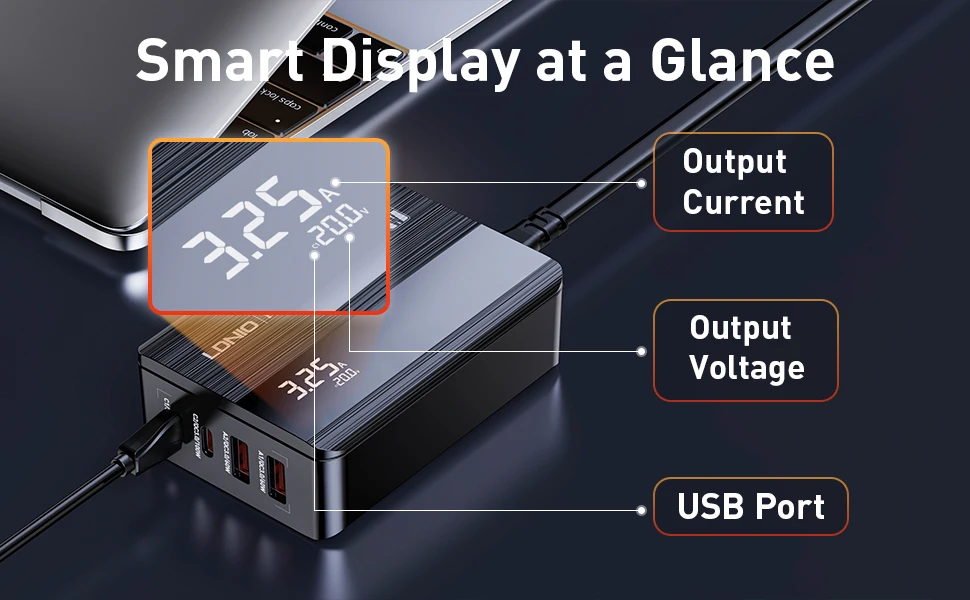

4 Each output port can display the output voltage independently in real time. If the light is off, the product enters standby mode.

5 The accuracy of the voltage and current displayed is within 3%.
